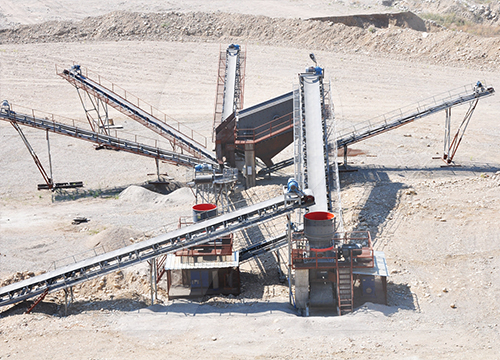

Designing a high-yield crushing production line in the Zambian Copperbelt requires more than just raw power; it demands a synchronized system architecture capable of handling highly abrasive, hard copper ore. As a Solution Architect, the goal is to eliminate bottlenecks, ensure a perfect closed-circuit mass balance, and maximize throughput (TPH) while mitigating local field challenges such as extreme dust and high ambient temperatures.

1. System Configuration: HST vs. HPT Series Cone Crushers

For processing Zambian copper ore, the secondary and tertiary crushing stages dictate the overall plant efficiency. Selecting between the HST Single-Cylinder Hydraulic Cone Crusher and the HPT Multi-Cylinder Hydraulic Cone Crusher depends on your precise material flow requirements.

HST Series: Precision and Automation

The HST series is engineered for seamless integration into automated production lines. Its single-cylinder design allows for rapid, dynamic adjustments to the Closed Side Setting (CSS) via an intelligent control system. If your feed material varies slightly in grading, the HST automatically calibrates the CSS to maintain a consistent product size, ensuring downstream grinding mills are not starved or overloaded.

HPT Series: Maximum Crushing Ratio

When dealing with the most abrasive copper sulfide ores, the HPT series is the architectural standard. It utilizes the principle of inter-particle lamination crushing, which significantly improves the crushing ratio and produces a higher percentage of fine, cubical particles. This reduces the circulating load in closed-circuit operations, effectively raising the net TPH.

2. Synchronizing Closed-Circuit Mass Balance

A crusher does not operate in isolation. In a closed-circuit system, oversized material returned from the vibrating screen must be perfectly accounted for to prevent “choking” or bottlenecking the cone crusher. To achieve synchronized mass balance:

• Screening Efficiency: Ensure the vibrating screen deck aperture perfectly matches the targeted CSS. For a tertiary HPT crusher producing a -12 mm feed for the ball mill, the CSS should be calibrated precisely, and the screen must handle the full circulating load (often 120-150% of the virgin feed).
• Surge Bins: Implement surge bins before the cone crushers to ensure a continuous, choke-fed cavity. Choke feeding is critical for lamination crushing; running a cone crusher half-empty destroys the wear parts and ruins the product shape.

3. Conquering Zambian Field Challenges

Sub-Saharan operational environments push equipment to its absolute limits. Your system architecture must account for the following physical constraints:

Hydraulic Protection and Cavity Clearing

Tramp iron (un-crushable metal like excavator teeth) is a reality in large-scale mining. Both HST and HPT crushers are equipped with robust hydraulic protection accumulators. Upon encountering tramp iron, the system instantly drops the main shaft, passes the un-crushable object, and automatically resets the CSS to its original position (e.g., returning exactly to a 15 mm CSS). This rapid cavity clearing prevents catastrophic downtime.

Extreme Heat and Dust Mitigation

Zambian summers mean high ambient temperatures that degrade standard lubrication. The crushing system must be specified with high-capacity cooling systems for the lubrication oil (measured in kW cooling capacity). Furthermore, heavy dust can contaminate the internal mechanics. Our solution architecture mandates a positive-pressure dust-proof sealing system, which continuously pumps clean air into the crusher’s internal cavity to repel abrasive silica and copper dust.

4. Frequently Asked Questions (FAQ)

How do I adjust the CSS for Zambian copper ore? The Closed Side Setting (CSS) should be adjusted based on the required final particle size and the specific liner profile (e.g., Medium, Fine, or Extra Fine). Use the hydraulic control panel to calibrate the CSS dynamically, ensuring the setting is checked daily to compensate for the high wear rates typical of abrasive copper ore. What is the best way to eliminate bottlenecks in the crushing line? Eliminate bottlenecks by performing a rigorous mass balance analysis. Ensure that the secondary crusher’s discharge curve matches the tertiary crusher’s feed opening. Implement choke feeding using surge bins, and optimize the vibrating screen’s deck area to handle the maximum circulating load without blinding. How does the hydraulic protection system improve TPH? By utilizing advanced hydraulic tramp iron release and rapid cavity clearing, the crusher avoids prolonged manual unblocking procedures. Minimizing these unexpected downtime events directly maximizes the effective operational hours, thereby significantly increasing the average continuous TPH of the production line.
